LB-130（Capacitance conveter）
We have discontinued the production of this product
Thank you for your attachment to this product for a long time.
We have discontinued this product because some parts of this product have been discontinued.
We have finished accepting orders as of July 31, 2015.
Thank you for your attachment to this product for a long time.
We have finished accepting repair requests as of July 31, 2017.
※We can't repair this product because we can't get some parts. Thank you for your understanding.

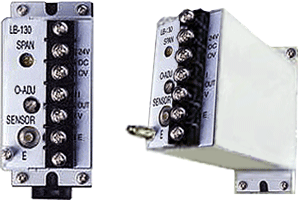

This product is a capacitance converter that can be easily installed in small equipment.
We have dedicated small electrodes.
Feature
●The product is small, easy to handle and easy to adjust.
●This product is a small but highly reliable converter.
Specification
| Input power supply | DC24V |
| Output power supply | DC4～20mA Load resistance 450Ω or less |
| Power consumption | 3W or less |
| Range of measurement | 20mA/30pF～20mA/300pF |
| linearity error | 1% or less |
| Measurement frequency | 70KHz±5％ |
| Usable temperature range | 0～55℃（No condensation） |
| Cable length | 10m or less |
Standard Dimension Figure
