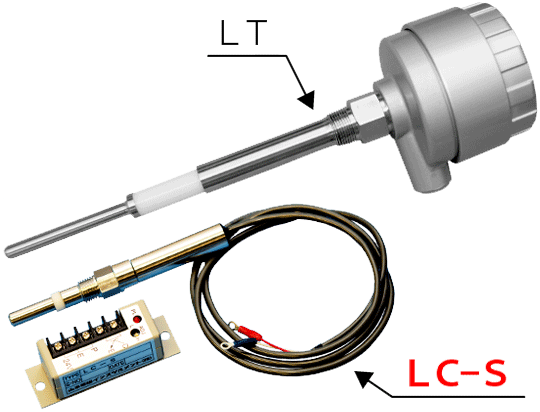

LC-S Level meter
This product is a small level sensor that takes over the high reliability of the LT type level switch.
It was made by bringing together the many years experience and technical capabilities.
Feature
●Small and easy to handle, easy to maintain.
●Wiring easy 2-wire.
●Lower price
●If you connect a lower limit detection sensor of rod style, This product will be a lower limit type.
Specification
| Power supply & Amplification | |
| Input power source | DC24V |
| Output form | Open collector non-contact output |
| Output capacity |
Maximum rating of the output transistor Collector current(Ic)10mA (Depending on the specifications can be up to 30mA) Voltage between the collector and emitter(Vceo)35V |
| Highest detection sensitivity | 0.7pF |
| Amplification unit allowable temperature | -5℃～60℃(No condensation) |
| Power supply unit paint color | Munsell N7 |
| Weight | About 90g |
| Sensor | |
| Connector | PT1/4B |
| Wetted Materials | SUS-316L & DURACON |
| Detector allowable temperature | -0℃～60℃ (No condensation) |
| Detector allowable pressure | Water pressure 2Mpa (Normal temperature) |
| Weight | About 100g |
Standard Dimensions Figure
Power supply & amplifier part
Sensor part
