Level indicator LB-110(Non-Explosion-proof)
We are not currently selling this product. Only maintenance and repair.
LB level indicator is the device that outputs capacitance that increases in proportion to the level and the signal is current output linearly.
This has both high resolution and good linearity because we have adopted our original electronic bridge and phase detection circuit.
Feature
- Output at high sensitivity is stable.
- Excellent linearity over a wide measuring range.
- Adjust is easily because there is 0/10V check terminal.
- It is stable even in minute conductive conditions such as poor electrode insulation due to condensation.
- The dedicated guard shielded cable eliminates the distributed capacitance of the electrodes between the cables, so it is not affected by the temperature drift of the cable capacitance.

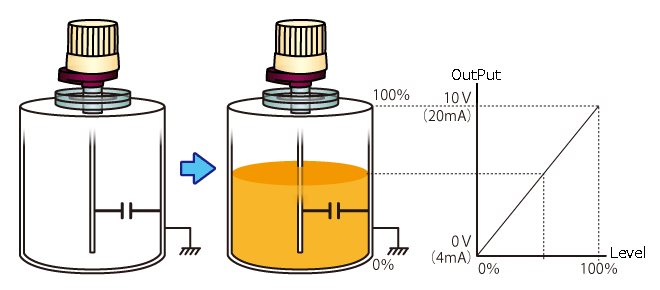

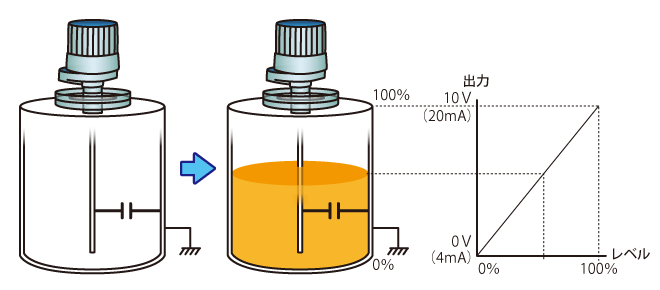

Operating principle
When tank is empty, there is just air between the electrode and the tank wall.
When the solution enters between electrode and the tank walls, the capacitance increases in proportion to the dielectric constant which the solution has.

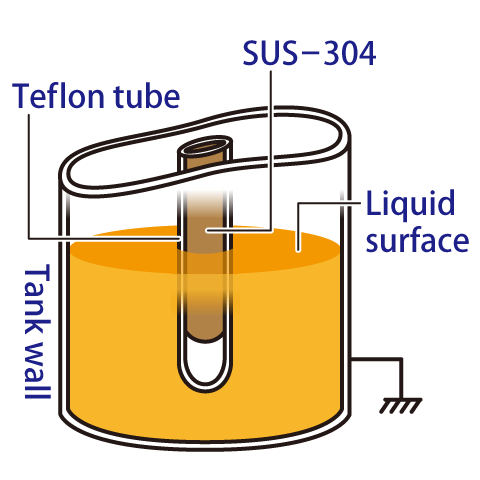

■If the measurement object is electrically conductive material.
Measure with a coated sensor（S1-type）.
It can not measure in between the sensor and the tank wall because measurement object is conductive, will measure capacitance In the thick of Teflon coating.
Various electrode shapes
We offer electrodes of various shapes.
Please click here.
We can customize our products for use in powders, granules and liquids and have amplifiers and electrodes according to the application.
Specification
LB-110 Converter
Input power source AC105V/210V±10％ 50/60Hz Output DC4～20mA Load resistance 450Ω or less
DC0～10V(For option)Load resistance 5KΩ more Measurement range Range Lo 10V/10pF～10V/100pF
Range Hi 10V/100pF～10V/1000pF Accuracy ±0.1％ or less Accuracy Linearity error
0.5% less than the temperature characteristics in -20℃～80℃
Cable length 10m within ±0.2pF
Cable length 50m within ±0.5pF
Sensitivity error ±0.5％×Indicated value
| Input power source | AC105V/210V±10％ 50/60Hz |
| Output | DC4～20mA Load resistance 450Ω or less DC0～10V(For option)Load resistance 5KΩ more |
| Measurement range | Range Lo 10V/10pF～10V/100pF Range Hi 10V/100pF～10V/1000pF |
| Accuracy | ±0.1％ or less |
| Accuracy | |
|---|---|
| Linearity error | 0.5% less than the temperature characteristics in -20℃～80℃ Cable length 10m within ±0.2pF Cable length 50m within ±0.5pF Sensitivity error ±0.5％×Indicated value |
※We have some version in accordance with the special measurement object.
High sensitivity type(-S)10V/2pF～10V/200pF
Extensive type(-W)10V/50pF～10V/5000pF
Standard Dimensions Figure
Changes of sensor's shape or material is possible.
